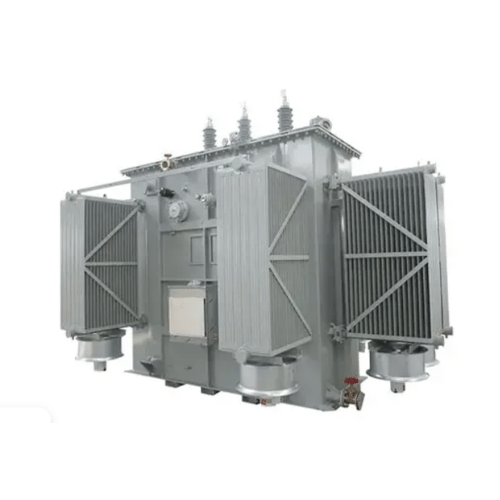

The 100 MVA power transformer is transmission-class equipment for bulk supply, generation step-up and utility substation service. It is supplied with radiator banks, high-voltage bushings and the gauges, relays and protection specified for the application. At 100 MVA this is transmission-class equipment supplied through contract manufacture. Lead times are long and every unit is engineered to the specific application.
Specifications
| Rating | 100 MVA |
|---|---|
| Phase | Three phase |
| Primary voltage class | 115kV / 138kV / 161kV / 230kV / 46kV / 69kV |
| Secondary voltage class | 12470V / 24940V / 34500V |
| Basic insulation level (BIL) | 550 kV / 650 kV / 750 kV / 900 kV / 250 kV / 350 kV |
| Frequency | 60 Hz |
| Temperature rise | 65 °C |
| Winding material | Aluminum |
| Insulating fluid | Mineral oil, Type I |
| Cooling class | ONAN/ONAF/OFAF |
| Taps | Plus/minus 2 x 2.5% full-capacity below and above nominal |
| Enclosure | ANSI 70 gray |
| Feed configuration | Per application |
| Standards | ANSI/IEEE C57.12, NEMA |
| Lead time | Quoted per project |
Full-load current
Rated secondary current for a 100 MVA unit at each available secondary voltage. Use these figures for conductor, breaker and bus sizing.
| Secondary voltage | Full-load current |
|---|---|
| 12470Y/7200 | 4,630 A |
| 13200Y/7620 | 4,374 A |
| 13800 Delta | 4,184 A |
| 24940Y/14400 | 2,315 A |
| 34500Y/19920 | 1,673 A |
Rated primary current at each available primary voltage:
| Primary voltage | Full-load current |
|---|---|
| 115000 GrdY | 502 A |
| 138000 GrdY | 418 A |
| 161000 GrdY | 359 A |
| 230000 GrdY | 251 A |
| 46000 Delta | 1,255 A |
| 69000 Delta | 837 A |
Typical applications
- Bulk power supply
- Interconnection of large generation assets
- Transmission substation service
- Generation step-up for utility-scale plants
Construction
Standard construction is aluminum windings in a sealed tank with mineral oil, ONAN/ONAF/OFAF cooled, 65 °C rise. The tank is welded and finished in ANSI 70 gray. A five-position no-load tap changer provides plus and minus two 2.5% full-capacity taps. Copper windings and natural ester fluid are available on request.
Standards and compliance
- Built to ANSI/IEEE C57.12 and applicable NEMA standards
- Factory test report supplied with every unit
- Supplied and supported by Bear Power Solutions, Jackson, Mississippi
Frequently asked questions
What voltages is the 100 MVA available in?
The 100 MVA is available with 115kV / 138kV / 161kV / 230kV / 46kV / 69kV primary and 12470V / 24940V / 34500V secondary. That is 30 configurations in total. Every voltage inside a class carries the same price and the same basic insulation level.
What is the lead time on a 100 MVA?
Lead time is quoted per project and depends on configuration and current factory loading. Non-standard voltages, accessories, custom enclosure work and non-standard fluid or winding material extend that. Confirm the delivery date with Bear Power Solutions before committing to a project schedule.
How is a power transformer of this size delivered and installed?
Units at this rating ship by specialized heavy haul, frequently with radiators, conservator and bushings removed and shipped separately. Site assembly, oil processing and field testing are required before energization. Delivery logistics should be planned alongside the order.
Can the 100 MVA be supplied with copper windings or natural ester fluid?
Standard catalog construction is aluminum windings with mineral oil. Copper windings and natural ester fluid are available on request. Both affect price and lead time, so request a quotation for a non-standard build.
What standards does the 100 MVA meet?
Units are built to ANSI/IEEE C57.12 and applicable NEMA standards. Factory test reports are provided with every unit.
Sizing the 100 MVA
At its lowest available secondary voltage the 100 MVA draws 4,630 A at full load; at its highest it draws 1,673 A. That spread is what makes secondary voltage selection an installation-cost decision as much as an electrical one – the higher voltage cuts conductor size for the same delivered power.
Secondary current at this rating is high enough that parallel conductor runs or busway are normally required on the low-voltage side. Confirm the secondary termination arrangement and available bus space before ordering.
Request a quote
For a firm price on a 100 MVA in a specific voltage configuration, or for a non-standard build with copper windings, natural ester fluid or custom accessories, send the details below and Bear Power Solutions will respond with a written quotation.
